Ladce HPP

About power plant

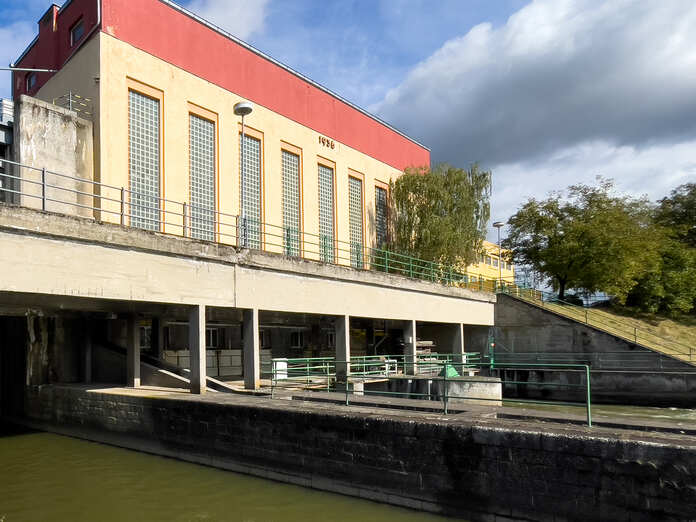

The Ladce hydroelectric power plant is the oldest operated hydroelectric power plant on the Váh river - in service since as early as 1936. It was built however at the time that the electrification was only getting off the ground and electricity supply demands were low. As a result, it was designed to a low flow rate - 120 m3.sec-1. All of the downstream and upstream HPP´s alike have a higher maximum usable flow, therefore the Ladce HPP constitutes a so-called bottleneck on the Váh river. Over the period between 1999 and 2001 the Ladce HPP had been reconstructed up to a flow rate of 2 x 90 m3.sec.-1, thereby also raising its installed capacity from 13.8 MW to 18.9 MW.
Zobraziť viac
ve-ladce-01xve-ladce-02x
  • ve-ladce-01x
  • ve-ladce-02x

Deeper insight

Technical parameters
Category
canal
Installed capacity MW
18,9 MW
Stream
Váh
Type of turbine
Kaplan
Flow rate
2x90 m3.s-1
Number of turbo-sets
2
Commissioned in
1936
Aver. annual generation
76 GWh
