Mikšová HPP

About power plant

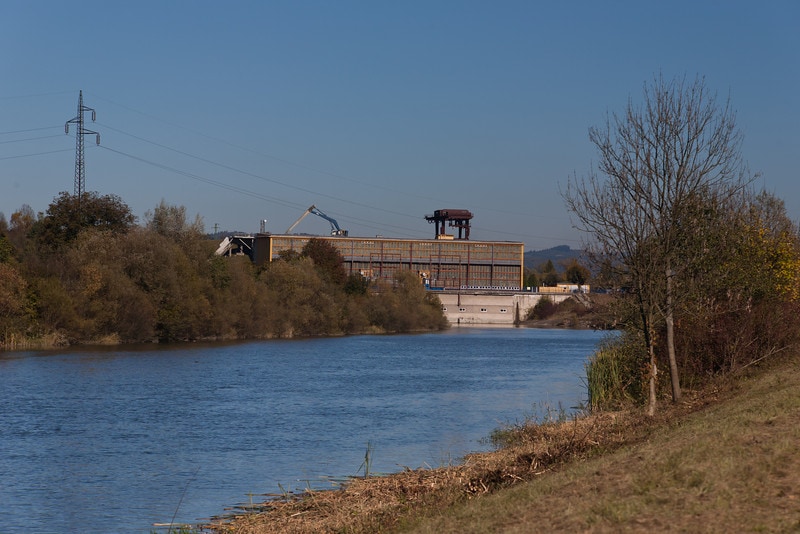

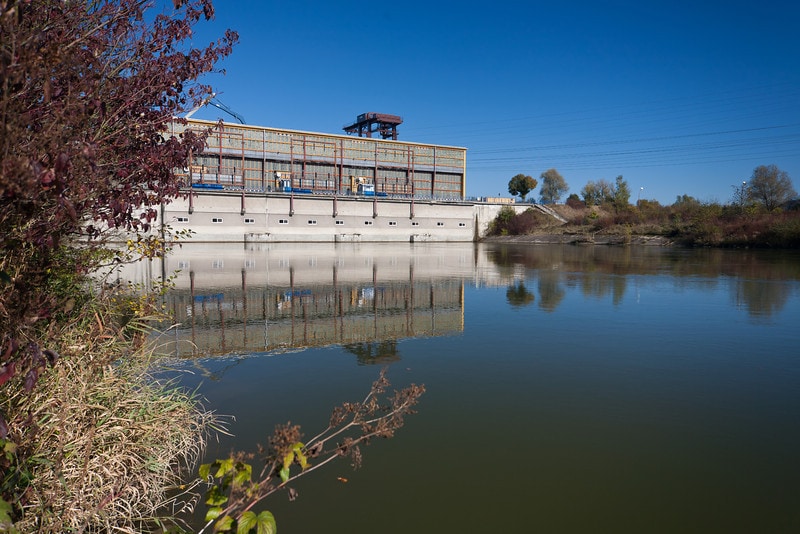

Mikšová hydroelectric power plant is a channel power plant that had been the country's largest hydroelectric power plant until after the Liptovská Mara pumped storage was built. The right-side slopes were used to build the diversion channel, so only the left-side dam was constructed throughout the length, being as high as 22 metres near the plant. Thanks to the high head the HPP also has a high installed capacity of 3 x 31.2 = 93.6 MW.
Zobraziť viac

Deeper insight

Technical parameters
Category
canal
Installed capacity
93,6 MW
Stream
Váh
Type of turbine
Kaplan
Flow rate
3x134 m3.s-1
Number of turbo-sets
3
Commissioned in
1963
Aver. annual generation
186,5 GWh
